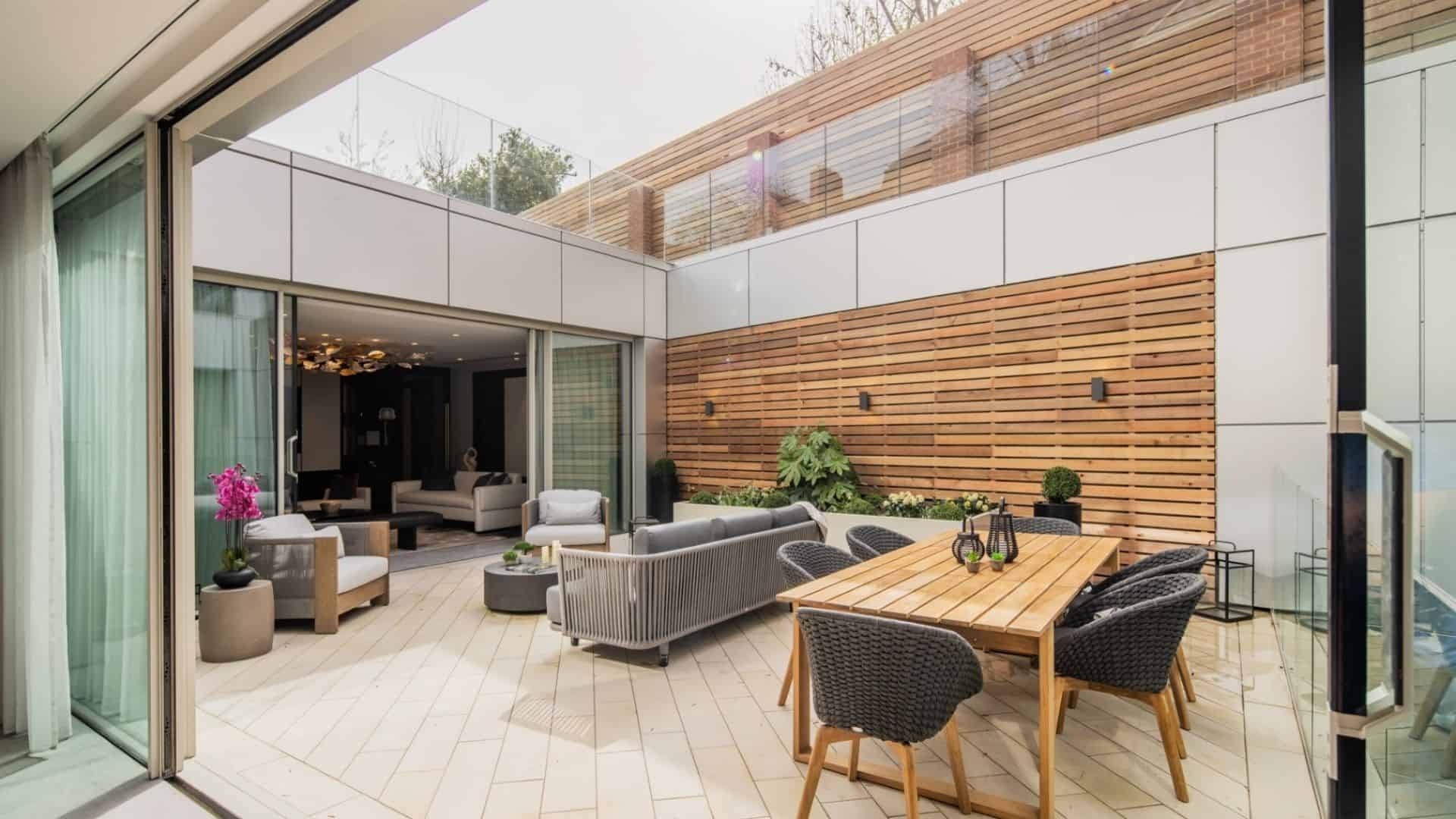

16a Lyndhurst Garden

Lyndhurst Gardens

High end residential property with complex double basement over rail tunnel

This property on Lyndhurst Gardens is a high-end residential property in a conservation area, featuring a double basement, piled and excavated over the Network Rail Belsize tunnel and tightly bounded by a primary school and Victorian townhouses.

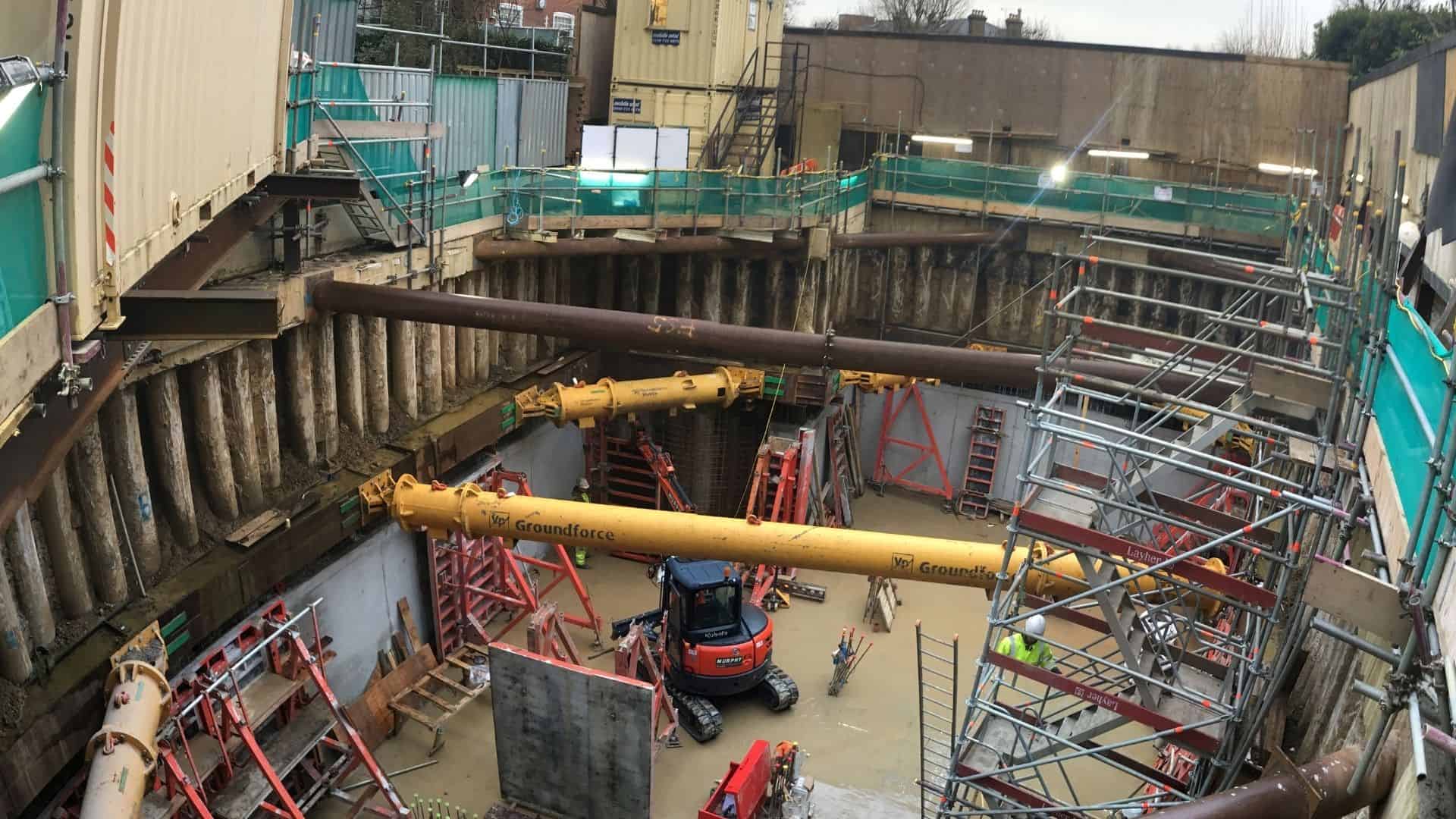

The project was to replace a 1980’s bungalow situated in the gardens of two high-end Victorian townhouses. The sensitivity of the full perimeter contiguous piled walls was carefully calculated and monitored.  There were jacked flying props and knee braces as part of the temporary works, sequenced from the proposed basement levels to minimise movement during construction.

The design needed to ensure the tall, slender existing garden masonry retaining walls to the south and east of the site were restrained during the works while  excavators and piling rigs navigated the propping to cart the basement spoil away.  The engineering design was approved by two peer review engineers for the local authority.

The project completed in spring of 2021.

Belsize Park, London
Architect / Partner
Tooley Foster Partnership

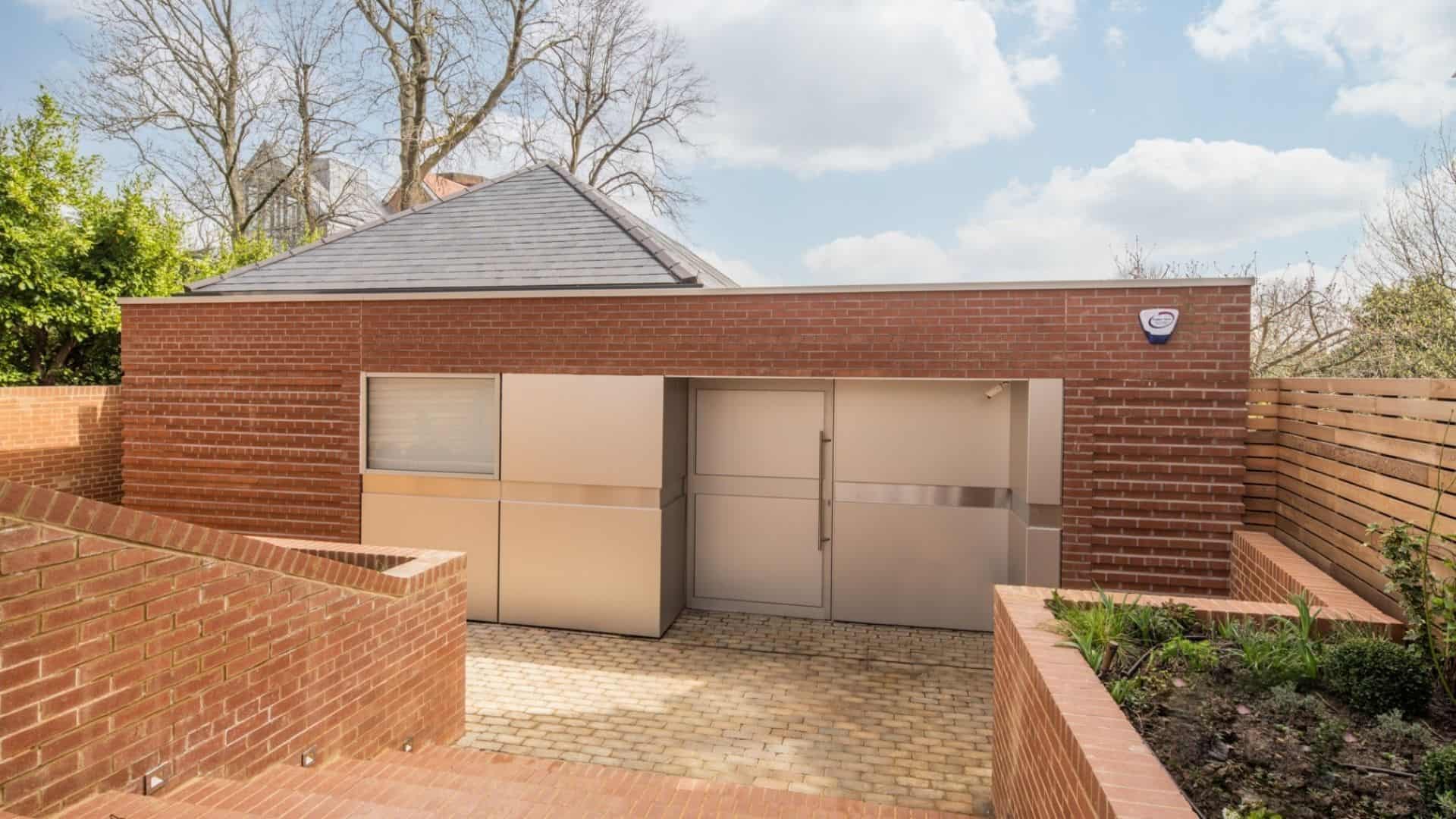

16a Lyndhurst External

16a Lyndhurst External Layers 2

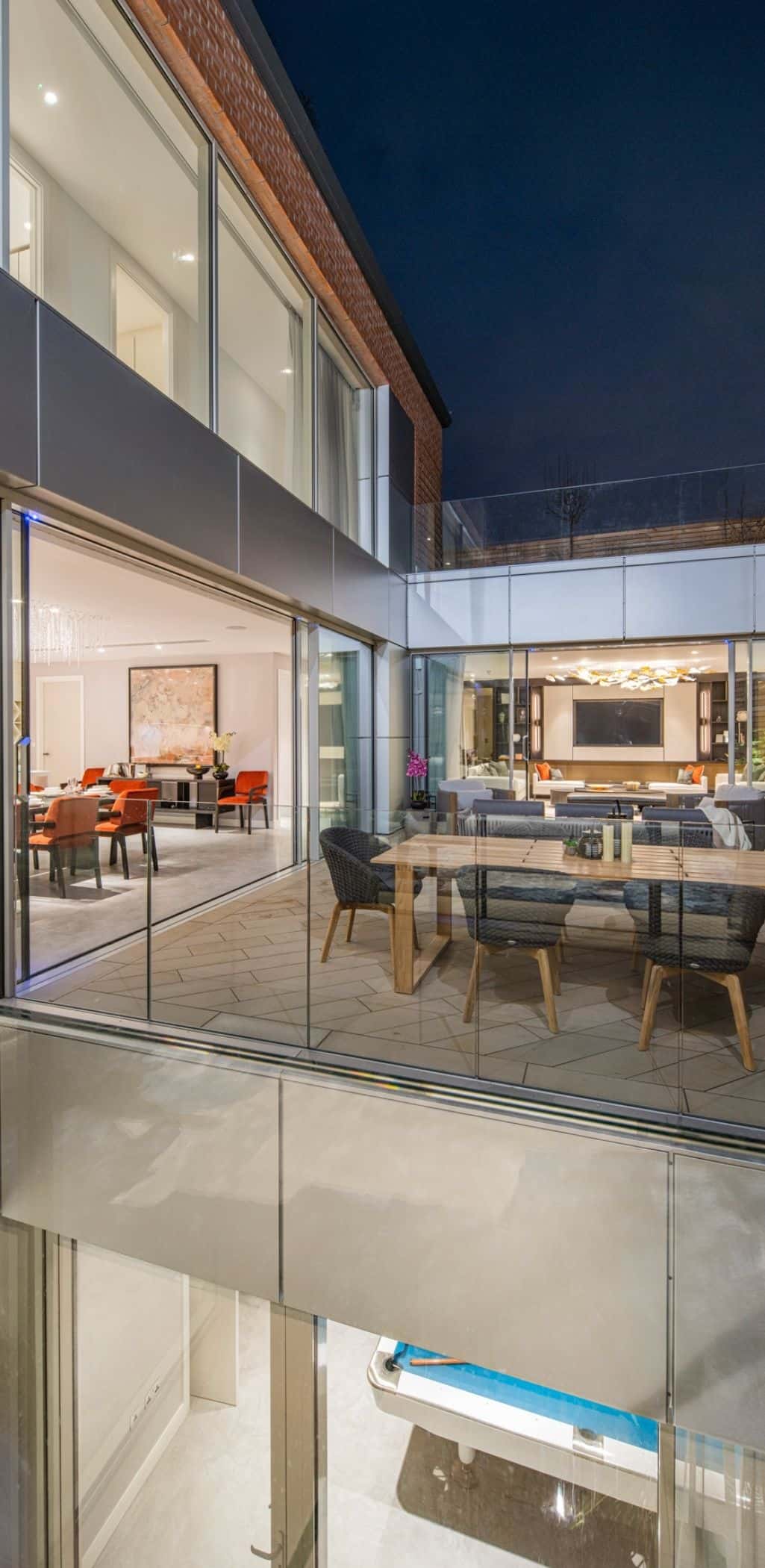

16a Lyndhurst Levels External
